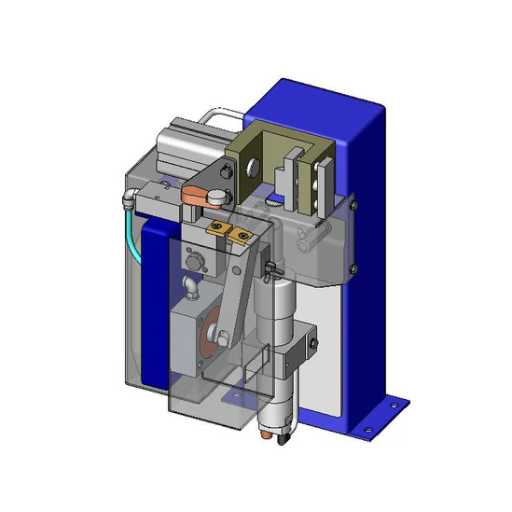

Robot Torch Cleaning Station with Spray Unit - BRG-2000D

The Robot Torch Cleaning Station BRG-2000D offers a comprehensive solution for maintaining optimal performance in automated welding environments. This advanced system combines efficient torch cleaning with anti-spatter fluid application, addressing common challenges faced in robotic welding processes.

Designed to seamlessly integrate into existing robotic welding setups, the BRG-2000D ensures consistent weld quality and minimises downtime. By automating the cleaning process and applying anti-spatter protection, this station significantly reduces the need for manual intervention, allowing for extended periods of uninterrupted welding operations.

Key Features and Benefits of the Robot Torch Cleaning Station BRG-2000D:

• Automated electro-pneumatic cleaning cycle for consistent performance
• Integrated anti-spatter fluid spraying system for enhanced protection
• Adjustable gas nozzle clamp unit to accommodate various torch diameters
• Solid reamer tool for effective removal of spatter and debris
• Compact design with cleaning, reaming, and spraying in one position
• Rapid cleaning process completed in approximately 3.5 seconds
• Easy integration with robot inputs and outputs for seamless operation
• Robust construction designed for demanding industrial environments
• 1-litre anti-spatter fluid capacity for extended use
• Operates on 24VDC power supply and 6-8 bar compressed air


The BRG-2000D model includes an Anti-spatter Spray Unit, which sprays anti-spatter fluid automatically after each cleaning cycle. The only anti-spatter recommended for use in J. Thielmann torch cleaning stations is Robolin AOS-75R.

By incorporating the BRG-2000D into welding processes, manufacturers can expect to see a marked improvement in overall efficiency and weld quality. The system's ability to maintain clean, well-functioning torches translates directly into more consistent welds, reduced rework, and ultimately, a more streamlined production process. For businesses seeking to optimise their automated welding operations, the Robot Torch Cleaning Station BRG-2000D represents a significant advancement in torch maintenance technology.

Product Name: BRG-2000D - Torch Cleaning Station with Spray Unit

Product Code: 450.1148
