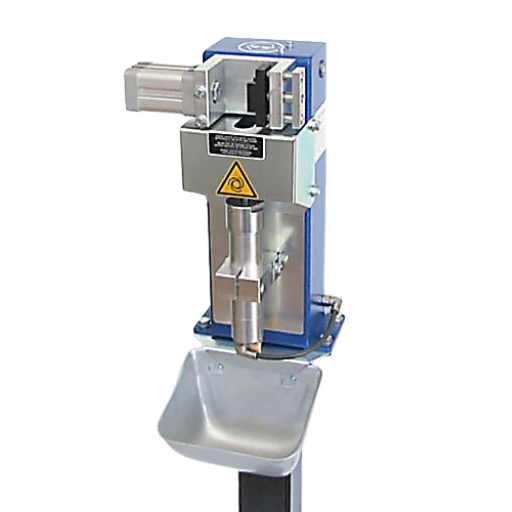

j.thielmann BRG-2000S
Characteristics
- Automatic electro-pneumatic program sequence
- Cleans gas nozzle for steel material: using a reamer
- Cleans the gas nozzle for aluminium material: using a brush/alternatively a reamer
- Without spraying anti-spatter fluid
- Adjustable gas nozzle fixing piece for different gas nozzle diameters
Robot inputs and outputs
- Robot input: Limit switch, gas nozzle not clamped
- Robot output: Start cleaning cycle
Technical Data
- Cycle time: ~ 3.0 seconds
- Voltage: 24 V DC
- Current: 0.15 A
- Pneumatic connection: 6bar/87psi
Product Code: 450.1147 /
